霧化噴嘴噴霧角度與噴霧距離-技術資料

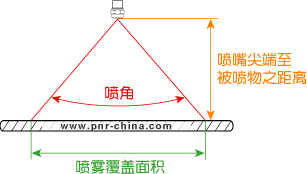

噴霧角度與噴霧距離 噴霧角度與噴霧高度(噴嘴口至被噴物之距離)關系著噴霧覆蓋面積的大小。      噴角 噴 嘴 尖 端 至 被 噴 物 之 距 離  ( 單位 : mm ) 50 100 150 200 250 300 400 500 600 700 800 900 1000 1500 覆 蓋 范 圍 之 理 論 參 考 值  ( 單位 : mm ) 5° 4.4 8.7 13.1 17.5 21.8 26.2 34.9 43.7 52.4 61.1 69.9 78.6 87.3 131.0 10° 8.7 17.5 26.2 35.0 43.7 52.5 70.0 87.5 105.0 122.0 140.0 158.0 175.0 262.0 15° 13.2 26.3 39.5 52.7 65.8 79.0 105.0 132.0 158.0 184.0 211.0 237.0 263.0 395.0 20° 17.6 35.3 52.9 70.5 88.2 106.0 141.0 176.0 212.0 247.0 282.0 317.0 353.0 529.0 25° 22.2 44.3 66.5 88.7 111.0 133.0 177.0 222.0 266.0 310.0 355.0 399.0 443.0 665.0 30° 26.8 53.6 80.4 107.0 134.0 161.0 214.0 268.0 322.0 375.0 429.0 482.0 536.0 804.0 35° 31.5 63.1 94.6 126.0 158.0 189.0 252.0 315.0 378.0 441.0 504.0 568.0 631.0 946.0 40° 36.4 72.8 109.0 146.0 182.0 218.0 291.0 364.0 437.0 510.0 582.0 655.0 728.0 1092.0 45° 41.4 82.8 124.0 166.0 207.0 249.0 331.0 414.0 497.0 580.0 663.0 746.0 828.0 1243.0 50° 46.6 93.3 140.0 187.0 233.0 280.0 373.0 466.0 560.0 653.0 746.0 839.0 933.0 1399.0 55° 52.1 104.0 156.0 208.0 260.0 312.0 416.0 521.0 625.0 729.0 833.0 937.0 1041.0 1562.0 60° 57.7 115.0 173.0 231.0 289.0 346.0 462.0 577.0 693.0 808.0 924.0 1039.0 1155.0 1732.0 65° 63.7 127.0 191.0 255.0 319.0 382.0 510.0 637.0 764.0 892.0 1019.0 1147.0 1274.0 1911.0 70° 70.0 140.0 210.0 280.0 350.0 420.0 560.0 700.0 840.0 980.0 1120.0 1260.0 1400.0 2101.0 75° 76.7 153.0 230.0 307.0 384.0 460.0 614.0 767.0 921.0 1074.0 1228.0 1381.0 1535.0 2302.0 80° 83.9 168.0 252.0 336.0 420.0 503.0 671.0 839.0 1007.0 1175.0 1343.0 1510.0 1678.0 2517.0 85° 91.6 183.0 275.0 367.0 458.0 550.0 733.0 916.0 1100.0 1283.0 1466.0 1649.0 1833.0 2749.0 90° 100.0 200.0 300.0 400.0 500.0 600.0 800.0 1000.0 1200.0 1400.0 1600.0 1800.0 2000.0 3000.0 95° 109.0 218.0 327.0 437.0 546.0 655.0 873.0 1091.0 1310.0 1528.0 1746.0 1964.0 2183.0 3274.0 100° 119.0 238.0 358.0 477.0 596.0 715.0 953.0 1192.0 1430.0 1668.0 1907.0 2145.0 2384.0 3575.0 110° 143.0 286.0 428.0 571.0 714.0 867.0 1143.0 1430.0 1714.0 1999.0 2285.0 2571.0 2856.0                  115° 157.0 314.0 471.0 628.0 785.0 942.0 1256.0 1570.0 1884.0 2197.0 2511.0 2825.0 3139.0 120° 173.0 346.0 520.0 693.0 866.0 1039.0 1386.0 1732.0 2078.0 2425.0 2771.0 3117.0 3464.0 130° 214.0 429.0 643.0 858.0 1072.0 1287.0 1716.0 2145.0 2573.0 3002.0 3431.0 3860.0            140° 275.0 549.0 824.0 1099.0 1374.0 1648.0 2198.0 2747.0 3297.0 3846.0                  150° 373.0 747.0 1120.0 1493.0 1866.0 2240.0 2986.0 3733.0            160° 567.0 1134.0 1702.0 2269.0 2837.0 3403.0           170° 1143.0 2285.0 3429.0

廊坊霧鳥噴霧系統技術有限公司 www.bojie.cc
